16 PIN Aftermarket Car Stereo Radio Harness
For Eclipse Car Stereos
Product Description:

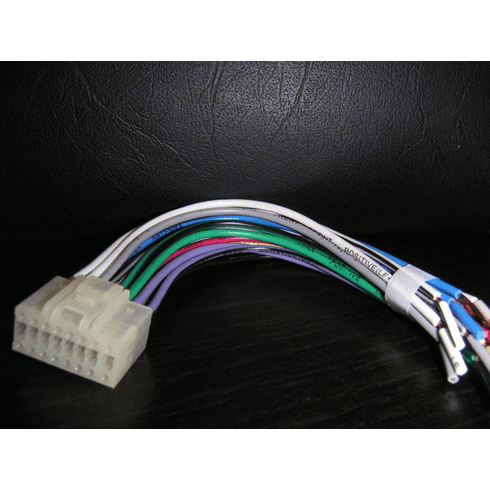

Eclipse Aftermarket harness 16pin
Plugs into Eclipse Stereo - Great replacement
- Wire Information Summary Below
Not all wires are always used so feel comfortable if you have some
wires that are not needed (most important):
RED (-Power 12v) / Black (-Ground) / Yellow (-Remote or Mem) /and
Blue(-PowerAntenna)
Click to Enlarge
Red: 12 volt ignition (power)
Yellow: 12 volt Battery (memory wire)-
Black: Ground
Blue: Power Antenna
Blue/White: Amp Turn on/Remote Wire
Orange: Illumination
Orange/white: Dimmer
|
Gray/Black: Right Front - on speaker
White: Left Front + on Speaker
White/Black: Left Front - on Speaker
Violent: Right Rear + on speaker
Violent/Black: Right Rear - on speaker
Green: Left Rear + on Speaker
Green/Black: Left Rear - on Speaker
|
Eclipse Aftermarket Stereo Radio Harness
Hard to find |
| 16
PIN ECLIPSE AFTERMARKET SAMPLE LIST: WORKS WITH THESE
AND MORE |
CD54400
CD5442
CD5441
CD5440
CD5423
CD5332
CD5331 |
CD3432
CD3434
CD5332
CD5543
CD5435
CD5442
CD8051 |
CD3422
CD8443
CD3402
CD3403
CD3404
CD3414
CD3421 |
| |
