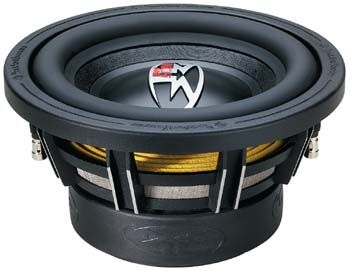

RockFord Fosgate 10" Woofer 1000watts (2x2 Ohm) RFD2110

RockFord Fosgate 10" Woofer 1000watts (2x2 Ohm) RFD2110
Item# roc10woofrf

Product Description:

Punch HX2 10 Inch Dual Voice Coil Subwoofer w/Cast Aluminum Frame (2x2ohm coils) - Rockford Fosgates DVC high excursion series-- 3-inch voicecoil aluminum former, santoprene surround extended pole piece aero vent baseplate -

Type

10 Inch SUBWOOFER      RFD2110

Voice coil

Configuration - Dual
Material - Aluminum
Description - 3INCH 4-Layer

Cone Material

Paper –FIBER-Lock

Frame Material

Frame - Cast
Material - Aluminum

Surround Material

Rubber - Santoprene POWER BART

Spider

 Basket

Crossover

N/A

Specifications



Power handling(RMS) - 500 Watts
Power handling(Peak) - 1000 Watts
Impedance - 2 Ohms
Sensitivity - 85 db
Vas - .95
Fs - 27
Qts - .37
Xmax - .55

Dimensions

Depth Bottom mount - 5.4375 in.
Cutout - 9.3125 in.
Displacement - 207.36 cu in.

Enclosure

Sealed box -
Recommended Minimum Volume (Cubic Feet) - .375
Recommended Maximum Volume (Cubic Feet) - 1.75
Ported box -
Recommended Volume (Cubic feet) - 1.00
F3(Hz) - 35
Number of Ports - 1
Port diameter(Inches) - 3
Port Length(Inches) - 13.25
