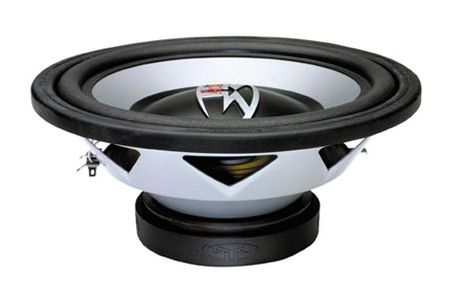

RockFord Fosgate 10" Woofer RFZ3810

Type

10 Inch SUBWOOFER      RFZ3810

Voice coil

Configuration - Single
Material - Aluminum
Description -
1.5 INCH  4-Layer

Cone Material

Poly/Plastic -
Polypropylene

Frame Material

Frame - Stamped
Material - Steel

Surround Material

Foam

Spider

 Basket

Crossover

N/A

Specifications

Power handling(RMS) - 150 Watts
Power handling(Peak) - 400 Watts
Impedance - 8 Ohms
Sensitivity - 87 db
Vas - 2.66
Fs - 27
Qts - .49
Xmax - .302

Dimensions

Depth Bottom mount - 4.8375 in.
Cutout - 9.3125 in.
Speaker Weight - 8 lb.s
Screw holes - 8
Magnet weight - 30 oz.
Magnet material - Ferrite

Enclosure

Sealed box -
Recommended Volume (Cubic Feet) - .75
Ported box -
Recommended Volume (Cubic feet) - 1.0
Number of Ports - 1
Port diameter(Inches) - 3
Port Length(Inches) - 13.25
