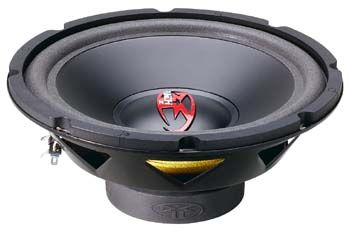

RockFord Fosgate 10" Woofer RFZ2810

Type

10 Inch SUBWOOFER      RFZ2810

Voice coil

Configuration - Dual
Material - Aluminum
 1.5 INCH 4-Layer

Cone Material

Poly/Plastic -
Polypropylene

Frame Material

Frame - Stamped
Material - Steel

Surround Material

Foam

Spider

 Basket

Crossover

N/A

Specifications

Power handling(RMS) - 100 Watts
Power handling(Peak) - 200 Watts
Impedance - 8 Ohms
Sensitivity - 86 db
Vas - 2.6
Fs - 33
Qts - .63
Xmax - 5.08

Dimensions

Depth Top mount - 4.6875 in.
Depth Bottom mount - 4.1875 in.
Cutout - 9.3125 in.
Screw holes - 8
Magnet weight - 18 oz.

Enclosure

Sealed box -
Recommended Minimum Volume (Cubic Feet) - .375
Recommended Maximum Volume (Cubic Feet) - 1.75
Ported box -
Recommended Volume (Cubic feet) - 1.00
F3(Hz) - 35
Number of Ports - 1
Port diameter(Inches) - 3
Port Length(Inches) - 13.25
