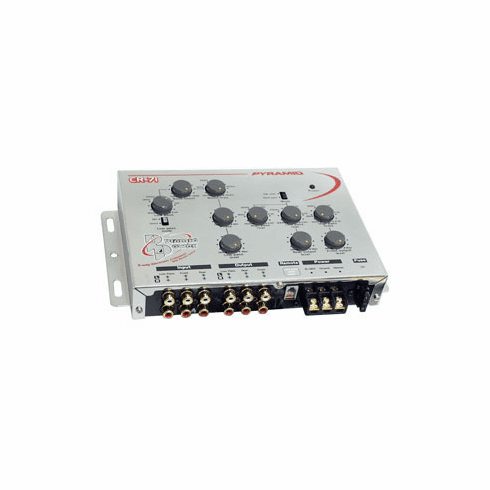

Pyramid CR71 3 Channel Electronic Crossover System
3 Way Crossover Network
Front, Rear & Subwoofer Inputs
Front, Rear & Subwoofer Outputs
Selectable Crossover Frequencies 45Hz-4.2kHz for Subwoofer 300Hz-4.2kHz for Low(Bandpass) 65Hz-4.5kHz for Rear High 65Hz-4.5kHz for Front High
Remote Subwoofer Level Control
Direct or Fr/Rr Mix Low Pass Input Selector
Gold Plated Connectors
Subwoofer Phase Switch
12dB Slope per Octave (2nd Order)
FContiuously Variable Bass Boost: 0 to +18dB
LED Power On Indicator
S/N Ratio: >90dB
For 12VDC Negative Ground Systems
Dimensions: 8.25”W x 6.5”L x 1.5”H
