PIONEER WIRE HARNESS 16 PIN AFTERMARKET RADIO 1999 - UP
Plugs into PIONEER Stereo

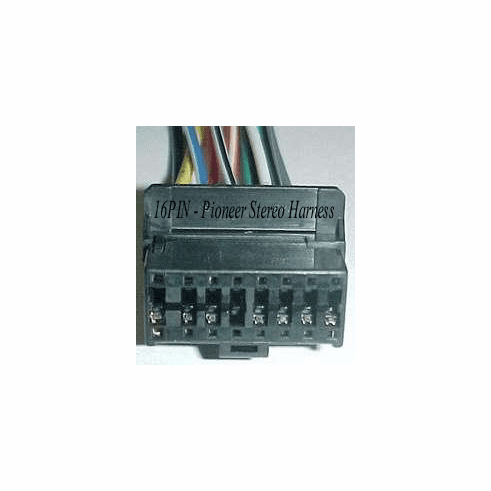

Pioneer Wire Harness 16 Pin Aftermarket Radio 1999 - UP
Pioneer Wire Harness 16 Pin Aftermarket Radio 1999 - UP
Item# Pio16PIN-0039-13
$12.00

Product Description:

Plugs into PIONEER Stereo - Great replacement

Wire Information Summary Below
Not all wires are always used so feel comfortable if you have some wires that are not needed -(the most important):
RED (-Power 12v) / Black (-Ground) / Yellow (-Remote or Mem) /and Blue(-PowerAntenna)

Click to Enlarge
  • Red: 12 volt ignition (power)
  • Yellow: 12 volt Battery (memory wire)-
  • Black: Ground
  • Blue: Power Antenna
  • Blue/White: Amp Turn on/Remote Wire
  • Orange: Illumination
  • Orange/white: Dimmer
    		•
  • Gray/Black: Right Front - on speaker
  • White: Left Front + on Speaker
  • White/Black: Left Front - on Speaker
  • Violent: Right Rear + on speaker
  • Violent/Black: Right Rear - on speaker
  • Green: Left Rear + on Speaker
  • Green/Black: Left Rear - on Speaker

    • Models Harness Works with
    DEH-1200
    DEH-120
    DEH-12
    DEH-1400
    DEH-140
    DEH-14
    		 DEH-P4400
    DEH-P44
    DEH-P5400
    DEH-P540
    DEH-P54    		 DEH-2400F
    DEH-240F
    DEH-24F
    DEH-3400
    DEH-340
    DEH-34    		 DEH-P5MP
    DEH-P6400
    DEH-P640
    DEH-P7400MP
    DEH-P740MP
    DEH-P74MP
