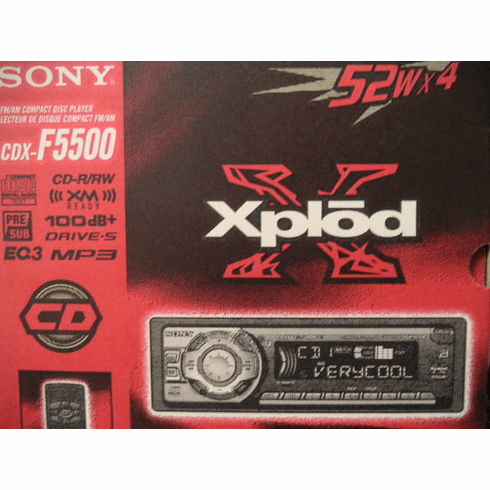

SONY MP3 PLAYER XM READY CDXF5500

Specifications

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC DISTORTION

23.2 watts per channel minimum continuous average power into 4 ohms,

4 channels driven from 20 Hz to 20 kHz with no more than 5% total harmonic distortion.

Wow and flutter Below measurable limit

Tone controls

Low:

±10 dB at 60 Hz (XPLOD)

Mid:

±10 dB at 1 kHz (XPLOD)

High:

±10 dB at 10 kHz (XPLOD)

Tuner section: FM

Power requirements

12 V DC car battery (negative ground)

Tuning range

87.5 - 107.9 MHz

Antenna terminal

External antenna connector

Intermediate frequency Usable sensitivity Selectivity

10.7 MHz/450 kHz     9dBf 75 dB   at 400 kHz

Signal-to-noise ratio

67 dB (stereo), 69 dB (mono)

Harmonic distortion at 1 kHz

Separation Frequency response; 30-15,000 Hz

0.5 % (stereo), 0.3 % (mono) 35 dB at 1 kHz

Dimensions Approx.

178 x 50 x 177 mm

(7 '/8 x 2 x 7 in) (w/h/d)

Mounting dimensions Approx. 182 x 53 x 161 mm

(7 'At x 2 Vs x 6 ^{3/8 in)}

(w/h/d)

Mass Approx. 1.2 kg

Tuning range: 530-1,710 kHz

Antenna terminal

External antenna connector

Intermediate frequency: 10.7 MHz/450 kHz

Sensitivity 30 uV

Source selector

• XA-C30 AUX-IN Selector

• XA-300

Supplied accessories

• Card remote commander

•  RM-X115

• Parts for installation and connections

• (1 set) Front panel

• carring case (1)

Optional accessories Rotary commander RM-X4S

BUS cable (supplied with

an RCA pin cord)

RC-61(lm),RC-62(2m)

Optional equipment CD changer (10 discs)

CDX-757MX

CD changer (6 discs) CDX-T69

MD changer (6 discs) MDX-66XLP

XM Satellite Radio

XT-XM1

Power amplifier section

Outputs

Speaker outputs (sure seal connectors)

Speaker impedance 4-8 ohms

Maximum power output

52W x 4 (at 4ohms)

General

Outputs

Audio output terminals (front, rear/sub switchable)

Power antenna relay control

Power amplifier control

Inputs

Telephone ATT control

Remote controller input

BUS control input

BUS audio input

Antenna input
