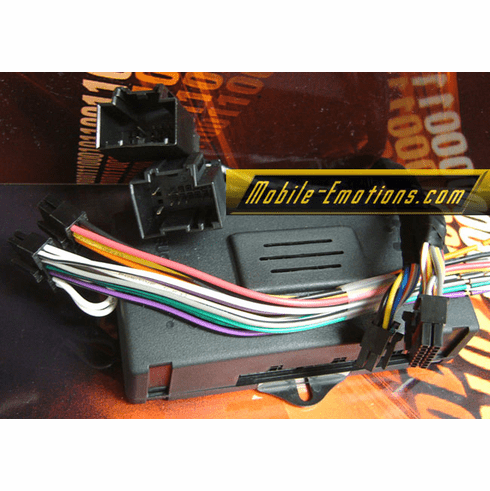

NC-GM40B GM LAN-29 Bit Vehicles w/ Onstar Bose & Chime 2006-08

GM40 BOSE / ONSTAR

2006-09 GM LAN Vehicles w/ Onstar, Bose system’s and Chime



DESIGNED TO ALLOW COMPLETE REMOVAL OF FACTORY RADIO FOR AFTERMARKET INSTALL

• Uses factory speaker for chime

• Adjustable chime volume (select vehicles)

• Generates a +12v switched output for aftermarket radios

• Automatic low voltage shutdown

• Illumination output wire

• Works on vehicles with OnStar, amplified and standard BOSE systems

• Phone mute



NOTES:

MAINTAINS THE FOLLOW FACTORY OPTIONS:  INCLUDING EASY TO FOLLOW DESCRIPTIVE DIRECTIONS

•  BOSE AMPLIFIED & NON BOSE SYSTEM ( EXCLUDES Y91/Z75 BOSE SYSTEM)

  • Y91 / Z75 CODE IS FOUND IN SERVICE PARTS STICKER ( USUALLY IN GLOVE BOX)

• FOLDING MIRRORS (INCLUDING REVERSE)

• PARK ASSIST - BOTH FRONT & REAR

• HEATED SEATS

• TURN SIGNAL (CLICKER) WITHOUT ADDITIONAL RELAY

• POWER RUNNING BOARDS ( IF FACTORY EQUIPPED)

• AC FAN-SPEED ( when  OnStar is Activated)

• PROVIDES

  • 12V IGNITION OUTPUT (5A MAX) INCLUDING RAP (RETAINED ACCESSORY POWER)

  • ILLUMINATION OUTPUT (2A MAX)

  • TELEPHONE NEGATIVE MUTE TRIGGER (INPUT)

  • LOW VOLTAGE (BATTERY RUN-DOWN PROTECTION)

  • ADJUSTABLE ONSTAR AND CHIME VOLUME

---

Make	Model	Year	NOTES:
Buick	Enclave	2008
Buick	Lucerne	2006
Buick	Lucerne	2007
Buick	Lucerne	2008
Cadillac	DTS	2006	(NOT COMPATIBLE W/ 8 CH. BOSE)
Cadillac	DTS	2007	(NOT COMPATIBLE W/ 8 CH. BOSE)
Cadillac	DTS	2008	(NOT COMPATIBLE W/ 8 CH. BOSE)
Cadillac	Escalade	2007
Cadillac	Escalade	2008
Cadillac	SRX	2007
Cadillac	SRX	2008
Chevrolet	Avalanche	2007
Chevrolet	Avalanche	2008
Chevrolet	Equinox	2007
Chevrolet	Equinox	2008
Chevrolet	Express	2008
Chevrolet	Impala	2006
Chevrolet	Impala	2007
Chevrolet	Impala	2008
Chevrolet	Monte Carlo	2006
Chevrolet	Monte Carlo	2007
Chevrolet	Silverado	2007
Chevrolet	Silverado	2008
Chevrolet	Suburban	2007
Chevrolet	Suburban	2008
Chevrolet	Tahoe	2007
Chevrolet	Tahoe	2008
GMC	Acadia	2007
GMC	Acadia	2008
GMC	Savana	2008
GMC	Sierra	2007
GMC	Sierra	2008
GMC	Yukon	2007
GMC	Yukon	2008
Hummer	H2	2008
Pontiac	Torrent	2007
Pontiac	Torrent	2008
Saturn	Outlook	2007
Saturn	Outlook	2008
Saturn	Vue	2008
Suzuki	XL-7	2007
