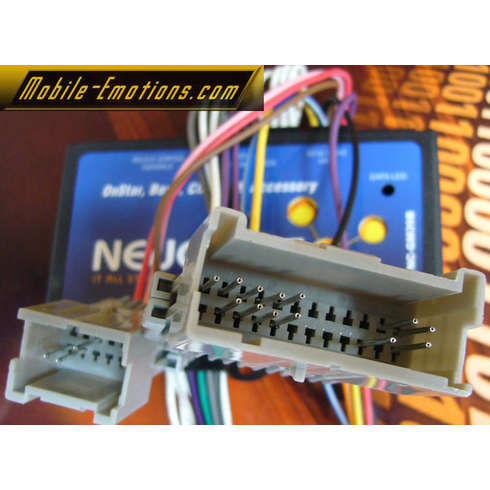

2000 - 2008 GM w/ Class II Databus OnStar & Bose

Wire Harness for Installing an Aftermarket Stereo

GM39 BOSE / ONSTAR

2000-2008 GM vehicles w/Class II

Data Bus, Onstar, and Bose system’s



• Uses factory speaker for chime

• Adjustable chime volume (select vehicles)

• Generates a +12v switched output for aftermarket radios

• Automatic low voltage shutdown

• 3 switchable Retained Accessory Power



RAP time modes (select vehicles)

* Standard RAP

* Extended RAP 20 minutes

* Street RAP 60 minutes



• Illumination output wire

• Works on vehicles with OnStar, amplified and standard BOSE systems

• Phone mute

EXCLUDES - Y91 / Z75 BOSE - ( CODE FOUND IN GLOVE BOX )

• RETAINS GM CLASS II FACTORY COMPUTER CHIME / BOSE / ONSTAR
• KEEPS FACTORY RADIO POWER W/ DELAY (RAP) THRU FACTORY SPEAKERS UNTIL DOORS OPEN
• ADDS - CHIME VOLUME CONTROL, PHONE MUTE, BATTERY MONITOR
• ADDS - ILLUMINATION OUTPUT FOR NEW AFTERMAKET RADIOS, OR NEON / LED LIGHTING ACCESSORIES
• ADDS - 2 EXTENDED TIME SETTINGS FOR RADIO/AUDIO DEVICES (must have compatible factory system)
