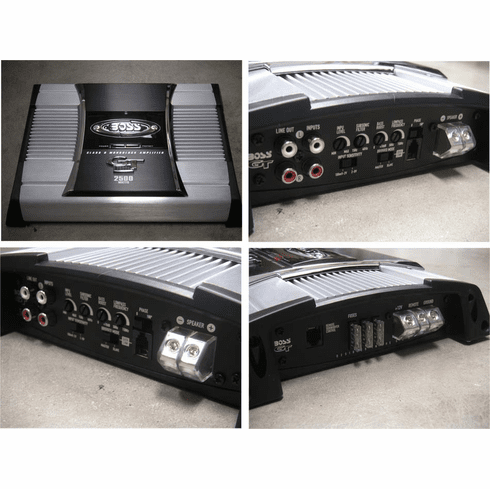

Mono Block Power Car Amp Class D - 2500w Boss GT2500D
GT RIOT power amplifiers high-end chassis with classic looks and a fully-loaded feature package: Built-in electronic crossovers allow custom sound quality, bass boost w/ added remote subwoofer bass control, and MOSFET power supplies provide excellent response and durability
Riot Class D MonoBlock Car Amplifier
boss gt2500d
- The Boss GT2500D mono subwoofer amp is a great choice when you're looking to
pound out the bass.
- With 2500w there's plenty of raw power for subs.
|
Boss GT2500D - Stats: Class D MONOBLOCK AMP GT2500 |
|
| mono subwoofer car amplifier 2500W MAX @ 2 OHM | |
| variable low-pass filter (50-250 Hz at 12 dB per octave) | |
| selectable bass boost (0/6/18 dB at 45 Hz) | |
| 1 OHM STABLE MONOBLOCK AMPLIFIER | |
| variable phase control (0-180 degrees) | |
| MOSFET power supply and output stage | |
| VARIABLE SUBSONIC FILTER (15 HZ - 40HZ, 24DB/OCTAVE | |
| VARIABLE LOW PASS FILTER (50HZ - 150HZ, 24DB/OCTAVE | |
| PLATINUM-PLATED SPEAKER AND POWER TERMINALS | |
| PLATINUM-PLATED RCA IMPUT AND BYPASS OUTPUT JACKS | |
| GLASS/ePOXY PRINTED CIRCUIT BOARD | |
| MOBILE-EMOTIONS.COM | |
| PWM (PULSE WIDTH MODULATION) SYSTEM | |
| MOSFET POWER SUPPLY | |
| 0/180 DEGREE PHASE SELECTOR | |
| REMOTE SUBWOOFER LEVEL CONTROL | |
| Performance | |
|---|---|
| Peak Power Output ( Watts x Channels) @ 2ohm | 2500 x 1 |
| RMS Power Output (Watts x Channels) @ 2ohm | 1550 x 1 |
| Peak Power Output(Watts x Channels) @ 4ohm | 900 x 1 |
| RMS Power Output (Watts x Channels) @ 4ohm | 550 x 1 |
| Frequency Response | 20-250 Hz |
| THD at Rated RMS Power | 0.07% |
| Signal to Noise Ratio | 100 dB |
| Input Voltage | 14.4v |
| Minimum Ohm Impedance Unbridged | 1 Ohm |
| Features | |
| Amplifier Class | D |
| Tri-Way Capable | No |
| Low-Pass Crossover Frequency | 50-250 Hz |
| Low-Pass Slope (dB/octave) | 18 dB |
| Bass Boost | 0/6/18 dB |
| Bass Boost Frequency | 45 Hz |
| Fuse Rating | 25 x 3 |
| Speaker Level Inputs | Yes |
| Preamp Outputs | 1 pair |
| Overload Power LED | Yes Red |
| LED Power Indicator | Yes Green |
| Height (inches) | 2-3/16 |
| Width (inches) | 9-5/16 |
| Length (inches) | 12.5 |
