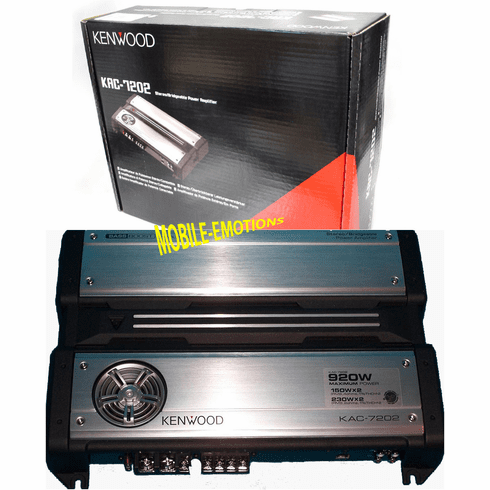

KENWOOD KAC-7202 (KAC7202) 2-Channel 920W AMPLIFIER

2 Channel Power Output

MOSFET Power Supply

Torroidal Noise Suppression Filter

Copper EE Core Power Transformer

Dual Secondary Capacitors

Ground Isolation Input Circuit

Detachable Aluminum Dress Plate & Top Panel Control

Die-Cast Aluminum Heat Sink

Cast Aluminum Sandblast Finish Heat Sink

Variable (50-200 Hz) 18 dB / Octave Low-Pass Crossover

Switchable (150 Hz) 12 dB / Octave High-Pass Crossover

Switchable 12 dB Bass Boost at 90 Hz

Preamp Outputs

High and Low Level Inputs

2 Ohms Stereo / 4 Ohms Mono Stable

Red Triangle Power Indicator

Screw-Type Power and Speaker Terminals

Single-Side Terminal Placement for Cleaner Installation and Improved Wire Management

• 150 watts RMS x 2 at 4 ohms (230 watts x 2 at 2 ohms)
• 460 watts RMS x 1 bridged output at 4 ohms (4 ohm stable in bridged mode)
• High-pass (12 dB per octave) and low-pass (24 dB per octave) filters variable from 50 to 200 Hz
• Selectable bass boost (0-18 dB at 40 Hz)
• Cooling fan
• MOSFET power supply
• CEA-2006 compliant
• Preamp- and speaker-level inputs
• Preamp outputs
• Tri-way capable (Tri-Way Crossover required)
• Requires 4-gauge power and ground leads wiring and hardware not included with amplifier
• Dimensions: 13-5/8"W x 2-5/16"H x 11-1/4"D
