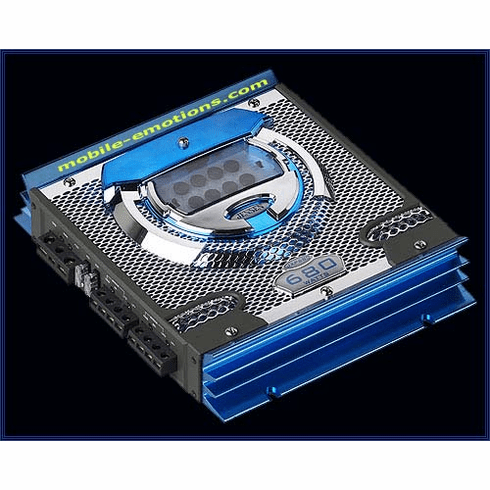

Jensen XP680 Car Amp 680 Watts 4 Channel

Jensen XP680 Car Amp 680 Watts 4 Channel
Item# XP680JENSEN
$119.99
This item is currently Out of Stock!

Product Description:

Bridgeable Amplifier with MOSFET Power Supply

Jensen JXP680 Amp

SPECIFICATIONS:

Auto-reset Low impedance(DC offset protection)
  • Auto-reset thermal(Short circuit protection)
  • Blue LED illuminated JENSEN logo
  • Bridgeable operation
  • Complimentary bi-polar output transistors
  • Extruded aluminum heatsink
  • High level (speaker level) inputs 2V - 10V
  • Input mode switch
  • Low level (RCA) inputs 300mV - 8V
  • Oversize power/ground terminals
  • Pass through RCA outputs
  • Power/protect bi-color LED indicator
  • PWM MOSFET power supply
  • Selectable crossover:(High pass/low pass/full range)
  • Top mounted controls
  • Tri-mode operation
  • Variable high pass crossover (40-400Hz)
  • Variable input level controls
  • Variable low pass crossover (40-400Hz)
  • Extruded aluminum heatsink
  • Top mounted controls
  • Oversize power/ground terminals
  • Power/protect bi-color LED indicator
  • Total Peak Music Power 680W
  • Peak Power Per Channel @ 2 ohm 170W x 4
  • RMS Power Per Channel @ 2 ohm 85W x 4
  • Peak Power Per Channel @ 4 ohm 120W x 4
  • RMS Power Per Channel @ 4 ohm 60W X 4
  • Peak Power Bridged @ 4 ohm 340W x 2
  • RMS Power Bridged @ 4 ohm 170W X 2

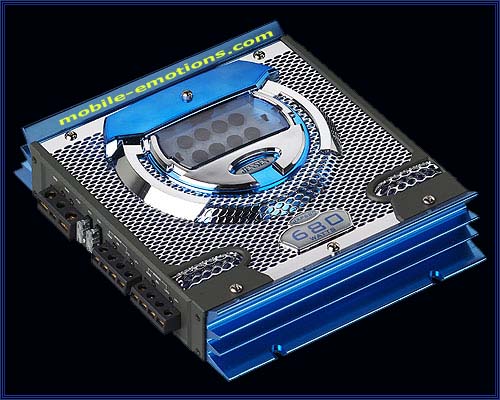

    CLICK FOR LARGER IMAGE
