H4 (9003) HID Headlight Conversion Kit
High/Low (Bi-Xenon)

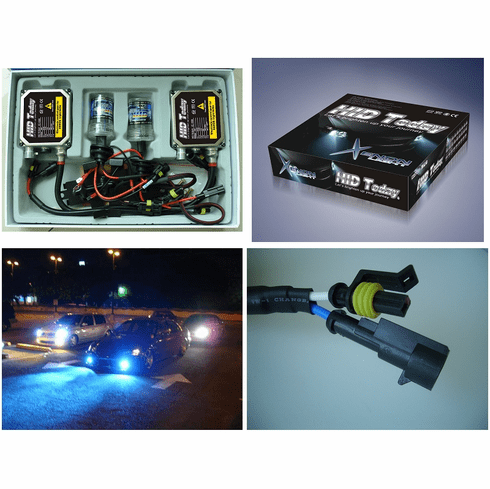

Product Description:
BI XENON (HIGH / LOW BEAM)
 |
Upgrade from Halogen /
Xenon Capsules to Real HID * 2 x HID Bulbs
* 2 x Ballasts w/ Secure Mounting Brackets
* 2 x Wire harness
* 4 x Zip ties
* All necessary wires and install accessories
* Installation diagram (English) |
HID Bulbs
HID
bulbs are individually tested and engineered for maximum light output. Each
bulb must pass a 200 hour endurance test, earthquake test, waterproof test,
true color test, rapid on/off test, and a max light output test. The
estimated life spend for our HID bulb are about 3000 hours (approx. 5 year
usage) *Low Beam Only - will lose use of High Beam
** IF Bi-Xenon or High/Low is mentioned it will have both High/Low Beam
HID Ballasts
Our HID ballasts feature the separation of certain traditionally high
failure components this custom assembly drastically decreases the failure
rate. We know of no other ballast or HID manufacturer in the world which
uses this very unique error reducing construction.
Input voltage: DC 9-16V
Input current: 3.5A
Luminous flux: 3000
Trigger voltage: 23KV
Initial firing current: 8.5A
Operate voltage: 85V +- 17V
Bulb loading capacity: 35W
Life: 3000 hours +
Operate temp: -40~+105 C
|
|
Light Beam Color |
|
 6000
 8000 |
 10000
 12000 |
