2000-2008 GM w/Class II Data Bus system - Relocation
  • Uses relays to retain factory door chime for Afermarket Installs

    • GM22 2000-2008 GM Class II Data Bus - Relocation
    GM22 2000-2008 GM Class II Data Bus - Relocation
    Item# GMRH22
    $39.99
    Availability: Usually ships the next business day

    Product Description:

    2000-2008 GM w/Class II Data Bus system  - Relocation

     2000-2008 GM w/Class II Data Bus system  - Relocation

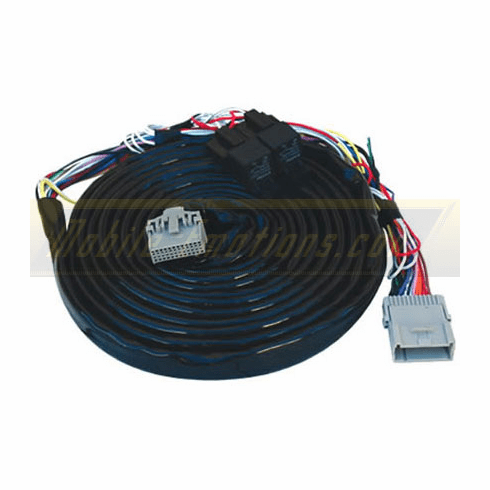

    GM STEREO/ Radio data Retention and Relocation Harness

    Uses relays to retain factory door chime -

    THIS DOES NOT WORK WITH ONSTAR or BOSE

    This Part Is to Keep Chime in Your GM when Installing Aftermarket Stereo

    • Your car is equipped with the GM Class 2 data bus.

    • This system sends and receives data via multiple modules throughout the vehicle including the radio.

    • This system also controls vital functions including the airbag and other functions like the door chimes.

    • The Retention of the factory radio in the vehicle is crucial to the proper function of these system.

    • This Harness will allow the relocation of the factory radio, retention of the door chimes and facilitate the installation of an aftermarket headunit.

    • Follow the directions carefully.

    • You actually are moving ( Relocating)  the original stereo to the rear deck / trunk or a storage compartment and installing the new stereo in the dash compartment.

    • This harness will keep all the Safety features: Air Bag, warning chime, etc.


      • RELOCATION HARNESS - REQUIRES STOCK RADIO TO BE RELOCATED TO TRUNK OR UNDERCAR SEAT. THIS HANRNESS IS NOT A REMOVAL HARNESS IT REQUIRES THE STOCK RADIO TO BE WIRED ALONG WITH THE AFTERMARKET STEREO. (WE RECOMMEND USING THE REMOVAL HARNESS FOR A CLEAN AND QUICK INSTALL)
