24 Pin Wire Harness Ford Lincoln Mercury OEM Standard Radio Plug

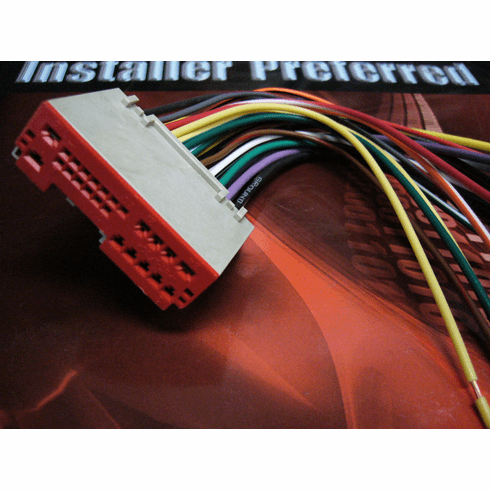

24Pin Wire Harness for OEM Stock Radio. This harness is for replacing stock radio. This item is needed when replacing your original radio. Important to have when lease is up.

---

24 PIN WIRE COLORS / FUNCTIONS: (Main Harness - Large)

TOP ROW

YELLOW 12V. CONSTANT

RED 12V. ACCESSORY

ORANGE / WHITE STRIPE (+) ILLUMINATION

ORANGE / BLACK STRIPE (-) ILLUMINATION

BLUE / RED STRIPE PAEN (US), AUD. SYSON (MAZDA)

BLACK / GREEN STRIPE GROUND (MAURADER), CLOCK (OTHERS)

BLACK / YELLOW STRIPE PTA (EXPEDITION)

WHITE LEFT FRONT SPEAKER (+)

GREEN LEFT REAR SPEAKER (+)

PURPLE RIGHT REAR SPEAKER (+)

GRAY RIGHT FRONT SPEAKER (+)

GRAY / BLACK STRIPE RIGHT FRONT SPEAKER (-)

BOTTOM ROW

BLACK GROUND

GRAY / RED STRIPE VSS (+)

RED / WHITE STRIPE 12V. IN START

YELLOW / ORANGE STRIPE NO FUNCTION

YELLOW / BLUE STRIPE NO FUNCTION

GREEN / RED STRIPE STEERING WHEEL CONTROL (+)

GREEN / WHITE STRIPE STEERING WHEEL CONTROL (-) (EXPEDITION)

BROWN / RED STRIPE REAR PARKING AID (EXPEDITION)

WHITE / BLACK STRIPE LEFT FRONT SPEAKER (-)

GREEN / BLACK STRIPE LEFT REAR SPEAKER (-)

PURPLE / BLACK STRIPE RIGHT REAR SPEAKER (-)

BLACK / GRAY STRIPE GROUND



2004-2006 Mercury Monterey  Stock OEM Wire Harness

2003-2007 Mercury Grand Marquis  Stock OEM Wire Harness

2003-2005 Mercury Marauder  Stock OEM Wire Harness

2003-2006 Ford Crown Victoria  Stock OEM Wire Harness

2003-2006 Ford Expedition  Stock OEM Wire Harness

2005-2006 Ford 500  Stock OEM Wire Harness

2005-2006 Ford Focus  Stock OEM Wire Harness

2005-2006 Ford Mustang  Stock OEM Wire Harness

2005-2006 Ford Pickup F-Series Superduty  Stock OEM Wire Harness

2005-2007 Mercury Montego  Stock OEM Wire Harness

2006 Ford Fusion  Stock OEM Wire Harness

2006 Hyundai Sonata  Stock OEM Wire Harness

2006-2007 Mercury Milan  Stock OEM Wire Harness

This harness works on standard wiring only. Not for amplified, JBL, or premium sound systems.
