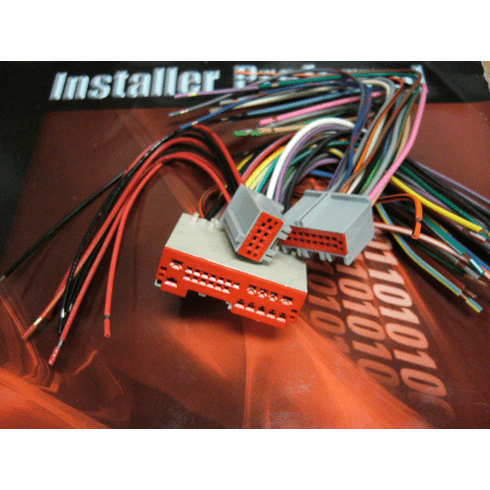

Ford Lincoln Mercury 2000 - 2007 Premium Upgrade OEM Harness 3Plug Power/4spk/DVD/Subwoofer

This harness works on standard wiring & amplified, JBL, or premium sound

24 PIN WIRE COLORS / FUNCTIONS: (Main Harness - Large)

TOP ROW

YELLOW 12V. CONSTANT

RED 12V. ACCESSORY

ORANGE / WHITE STRIPE (+) ILLUMINATION

ORANGE / BLACK STRIPE (-) ILLUMINATION

BLUE / RED STRIPE PAEN (US), AUD. SYSON (MAZDA)

BLACK / GREEN STRIPE GROUND (MAURADER), CLOCK (OTHERS)

BLACK / YELLOW STRIPE PTA (EXPEDITION)

WHITE LEFT FRONT SPEAKER (+)

GREEN LEFT REAR SPEAKER (+)

PURPLE RIGHT REAR SPEAKER (+)

GRAY RIGHT FRONT SPEAKER (+)

GRAY / BLACK STRIPE RIGHT FRONT SPEAKER (-)

BOTTOM ROW

BLACK GROUND

GRAY / RED STRIPE VSS (+)

RED / WHITE STRIPE 12V. IN START

YELLOW / ORANGE STRIPE NO FUNCTION

YELLOW / BLUE STRIPE NO FUNCTION

GREEN / RED STRIPE STEERING WHEEL CONTROL (+)

GREEN / WHITE STRIPE STEERING WHEEL CONTROL (-) (EXPEDITION)

BROWN / RED STRIPE REAR PARKING AID (EXPEDITION)

WHITE / BLACK STRIPE LEFT FRONT SPEAKER (-)

GREEN / BLACK STRIPE LEFT REAR SPEAKER (-)

PURPLE / BLACK STRIPE RIGHT REAR SPEAKER (-)

BLACK / GRAY STRIPE GROUND



16 PIN WIRE COLORS / FUNCTIONS: ( Medium Plug - DVD)

TOP ROW

TAN DVD SIGNAL LEFT (+)

LIGHT BLUE DVD SIGNAL LEFT (-)

GREEN / BLACK STRIPE SHIELD

BLACK NO FUNCTION

WHITE NO FUNCTION

BLACK AUDIO SYSTEM ON

GRAY / RED STRIPE AUDIO CORP. PROTOCOL A

VIOLET / BLACK STRIPE AUDIO CORP. PROTOCOL B

BOTTOM ROW

PINK DVD SIGNAL RIGHT (+)

GRAY / WHITE STRIPE DVD SIGNAL RIGHT (-)

GREEN / ORANGE STRIPE NO FUNCTION

BLACK NO FUNCTION

BROWN / RED STRIPE NO FUNCTION

BLUE / RED STRIPE NO FUNCTION

ORANGE / BLACK STRIPE NO FUNCTION

GRAY NO FUNCTION



8 PIN WIRE COLORS / FUNCTIONS: (Small Plug - Subwoofer)

TOP ROW

RED / YELLOW STRIPE SUBWOOFER (+)

BLACK SUBWOOFER (-)

BLACK SHIELD

RED SUBWOOFER MUTE

BOTTOM ROW

RED / YELLOW STRIPE NO FUNCTION

BLACK NO FUNCTION

BLACK NO FUNCTION

RED NO FUNCTION



2004-2006 Mercury Monterey  Stock OEM Wire Harness

2003-2007 Mercury Grand Marquis  Stock OEM Wire Harness

2003-2005 Mercury Marauder  Stock OEM Wire Harness

2003-2006 Ford Crown Victoria  Stock OEM Wire Harness

2003-2006 Ford Expedition  Stock OEM Wire Harness

2005-2006 Ford 500  Stock OEM Wire Harness

2005-2006 Ford Focus  Stock OEM Wire Harness

2005-2006 Ford Mustang  Stock OEM Wire Harness

2005-2006 Ford Pickup F-Series Superduty  Stock OEM Wire Harness

2005-2007 Mercury Montego  Stock OEM Wire Harness

2006 Ford Fusion  Stock OEM Wire Harness

2006 Hyundai Sonata  Stock OEM Wire Harness

2006-2007 Mercury Milan  Stock OEM Wire Harness
