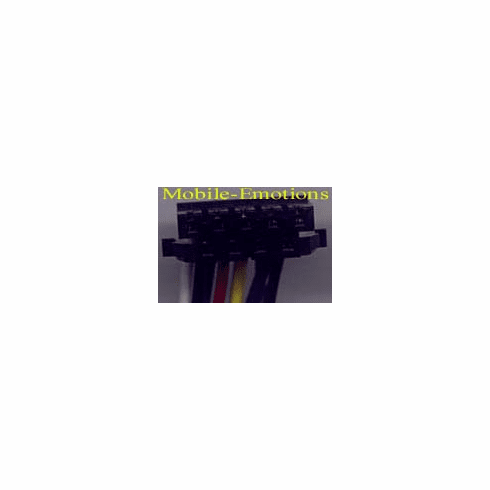

Plugs into JVC Stereo - Great replacement
Wire Information Summary Below
Not all wires are always used so feel comfortable if you have some wires that are not needed -(the most important):
RED (-Power 12v) / Black (-Ground) / Yellow (-Remote or Mem) /and Blue(-PowerAntenna)
Click to Enlarge
Red: 12 volt ignition (power)
Yellow: 12 volt Battery (memory wire)-
Black: Ground
Blue: Power Antenna
Blue/White: Amp Turn on/Remote Wire
Orange: Illumination
Orange/white: Dimmer
Gray/Black: Right Front - on speaker
White: Left Front + on Speaker
White/Black: Left Front - on Speaker
Violent: Right Rear + on speaker
Violent/Black: Right Rear - on speaker
Green: Left Rear + on Speaker
Green/Black: Left Rear - on Speaker
| | |
