Clarion 16 Pin Stereo Molex Connector New Models 02+

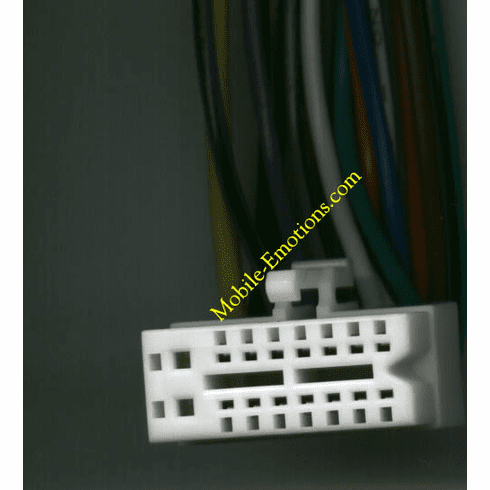

16 Pin Stereo Connector for Clarion Stereos
16 Pin Stereo Connector for Clarion Stereos
Item# CL16a-00 / 34-16

Price

$14.95

Sale Price :

$9.95

Product Description:

Plugs into Clarion Stereo - Great replacement

Wire Information Summary Below
Not all wires are always used so feel comfortable if you have some wires that are not needed -(the most important) is the:
RED / Black / Yellow /and Blue for Powering up


Click to Enlarge
  • Red: 12 volt ignition
  • Yellow: 12 volt Battery (memory wire) -
  • Black: Ground
  • Blue: Power Antenna
  • Blue/White: Amp Turn on/Remote Wire
  • Orange: Illumination
  • Orange/white: Dimmer
  • Gray/Black: Right Front - on speaker
  • White: Left Front + on Speaker
  • White/Black: Left Front - on Speaker
  • Violent: Right Rear + on speaker
  • Violent/Black: Right Rear - on speaker
  • Green: Left Rear + on Speaker
  • Green/Black: Left Rear - on Speaker
