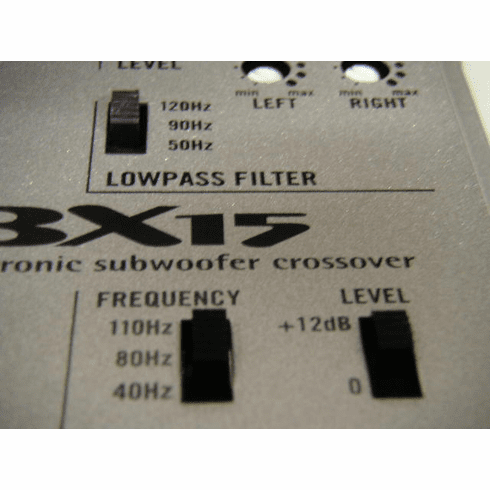

Boss Electronic Subwoofer Crossover INCREASE BASS Rev-15x
ADDING
THIS SUB CROSSOVER WILL DOUBLE BASS OUTPUT AND FINE TUNE CORRECT FREQ.
LEVELS *
S/N Ratio: 85dB
BOSS
Audio Systems Electronic Crossover. This product has been designed and built
to deliver excellent sound quality and long lasting high performance. We are
sure you'll enjoy listening to your favorite music with this BOSS component
in your car audio system. To guarantee top performance use installation accessories such as RCA interconnects, power cable, and speaker wire.
INTRODUCTION
FEATURES &
SPECIFICATIONS
*
Active 12dB Crossover
*
High or Low Level Input
*
LED Power On Indicator
*
Adjustable Input Level Control
(Left/Right)
*
Crossover Freq. 50, 90, 120Hz
*
Selectable Bass Boost® 110, 80, 40Hz
(+12dB)
*
Channel Separation: 70dB
*
Dimensions: 3- 5/8" (W) x 4- 7/8" (L) x 7/8" (H)
(92mm
x 124mm x22mm)
ELECTRONIC-CONNECTIONS
& WIRING Power connection
•B+(12V)
: Connect a red wire to the car battery or other power source. •REMOTE:
Connect an orange wire to remote activating (12V DC)wire of car-stereo
or equalizer. •GND : Connect a black wire to the car chassis for
ground connection.
