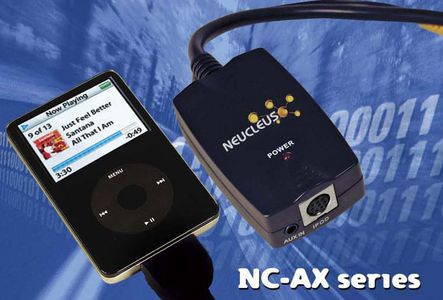

AX Series Guide for Adding Ipod - Easy Plug N Play

AX Series Guide for Adding Ipod - Easy Plug N Play
  • iPOD INTERGRATION
  • SECOND AUX INPUT: ADD iPOD FUNCTIONS TO STOCK OEM RADIO
  • CHARGES iPOD / NO FM MODULATION
  • EZ INSTALL - NO CUTTING WIRES
  • PLUG N PLAY HARNESS AX SERIES APPLICATION GUIDE
    Make / Model Year Part Description
    CHRYSLER/DODGE
    All Models  99-02  NC-Ch ax1  8 pin plug installs behind radio. Works with concert and symphony sound systems
    All Models  2002-04 NC-Ch ax2  10 pin plug select round corner radios w/ 10pin square plug NON canbus disc (must be preset #1)
    FORD/LINCOLN/MERCURY
    AVIATOR  2004-05 NC-Fd ax4  16 pin plug. Installs behind radio
    CONTINENTAL  95-97  NC-Fd ax1  Plugs in at the RCU unit located in the trunk on the passenger side behind rear seat
    CONTINENTAL  98-04  NC-Fd ax3  20 pin plug. Installs behind factory radio. Confirm plug befor selling
    CONTINENTAL  2003-05 NC-Fd ax4  16 pin plug. Installs behind radio. Confirm plug before selling
    COUGAR  99-04  NC-Fd ax2  12 pin, plugs into back of radio
    CROWN VICTORIA  95-97  NC-Fd ax1  Plugs in at the RCU unit located in the trunk on the passenger side behind rear seat
    CROWN VICTORIA  98-03  NC-Fd ax3  20 pin plug. Installs behind factory radio
    CROWN VICTORIA  2003-05 NC-Fd ax4  16 pin plug. Installs behind radio
    ECONOLINE  98-04  NC-Fd ax3  20 pin plug. Installs behind factory radio
    ESCAPE  2004-05 NC-Fd ax4  16 pin plug. Installs behind radio
    ESCORT  97-04  NC-Fd ax2  12 pin, plugs into back of radio
    EXCURSION  00-04  NC-Fd ax3  20 pin plug. Installs behind factory radio
    EXPEDITION  99-04  NC-Fd ax3  20 pin plug. Installs behind factory radio
    EXPLORER  95-97  NC-Fd ax1  Plugs in at the RCU unit located in the passenger side rear pannel
    EXPLORER  99-04  NC-Fd ax3  20 pin plug. Installs behind factory radio
    EXPLORER  2004-05 NC-Fd ax4  16 pin plug. Installs behind radio
    FOCUS  00-03  NC-Fd ax2  12 pin, plugs into back of radio
    FREESTAR  2004-05 NC-Fd ax4  16 pin plug. Installs behind radio
    F-SERIES P/U  98-03  NC-Fd ax3  20 pin plug. Installs behind factory radio
    LS  00-03  NC-Fd ax3  20 pin plug. Installs behind factory radio
    MARQUIS  95-97  NC-Fd ax1  Plugs in at the RCU unit located in the trunk on the passenger side behind rear seat
    MARQUIS  98-03  NC-Fd ax3  20 pin plug. Installs behind factory radio
    MUSTANG  2004 NC-Fd ax4  16 pin plug. Installs behind radio
    NAVIGATOR  99-03  NC-Fd ax3  20 pin plug. Installs behind factory radio
    RANGER  98-04  NC-Fd ax3  20 pin plug. Installs behind factory radio
    SABLE  96-05  NC-Fd ax1  Plugs in at the RCU unit located on drivers side trunk wheel well behind carpet
    SPORT TRAC  00-04  NC-Fd ax3  20 pin plug. Installs behind factory radio
    TAURUS  95-07  NC-Fd ax1  Plugs in at the RCU unit located on drivers side trunk wheel well behind carpet
    THUNDERBIRD  99-04  NC-Fd ax3  20 pin plug. Installs behind factory radio
    TOWN CAR  95-97  NC-Fd ax1  Plugs in at the RCU unit located in the trunk on the passenger side behind rear seat
    TOWN CAR  98-03  NC-Fd ax2  12 pin, plugs into back of radio
    TRACER  95-04  NC-Fd ax1
    VILLAGER  99-02  NC-Fd ax3  20 pin plug. Installs behind factory radio
    WINDSTAR  99-04  NC-Fd ax3  20 pin plug. Installs behind factory radio
    Imports
    AUDI
    All Models  98-06  NC-VW ax2  8 pin plug installs behind radio. Works with concert and symphony sound systems
    HONDA
    ACCORD  98-02  NC-Ho ax1  14 pin blue plug behind radio. Must be cd changer ready
    ACCORD  2003-07 NC-Ho ax2  14 pin new style, plugs in to back of radio
    CIVIC  99-05  NC-Ho ax1  14 pin blue plug behind radio. Must be cd changer ready. Includes SI and Hybrid models
    CRV  99-04  NC-Ho ax1  14 pin blue plug behind radio. Must be cd changer ready
    CRV  2005-06 NC-Ho ax2  14 pin new style, plugs in to back of radio
    ELEMENT  2003-05 NC-Ho ax2  14 pin new style, plugs in to back of radio
    ODYSSEY  99-04  NC-Ho ax1  14 pin blue plug behind radio. Must be cd changer ready
    ODYSSEY  2005-06 NC-Ho ax2  14 pin new style, plugs in to back of radio
    PILOT  2003-05 NC-Ho ax1  14 pin blue plug behind radio. Must be cd changer ready
    PRELUDE  99-01  NC-Ho ax1  14 pin blue plug behind radio. Must be cd changer ready
    RIDGELINE  2006-07 NC-Ho ax2  14 pin new style, plugs in to back of radio
    S2000  00-03  NC-Ho ax1  14 pin blue plug behind radio. Must be cd changer ready
    S2000  2004-06 NC-Ho ax2  14 pin new style, plugs in to back of radio
    SCION
    xA  2004-06 NC-Toy ax2  12 pin mini, plugs in behind radio. Must have cd/aux button
    xB  2004-06 NC-Toy ax2  12 pin mini, plugs in behind radio. Must have cd/aux button
    xC  2005-06 NC-Toy ax2  12 pin mini, plugs in behind radio. Must have cd/aux button
    TOYOTA
    4 RUNNER  98-03  NC-Toy ax1  12 pin large, plugs behind rado. Must have cd/aux button
    4 RUNNER  2003-05 NC-Toy ax2  12 pin mini, plugs in behind radio. Must have cd/aux button
    AVALON  98-03  NC-Toy ax1  12 pin large, plugs behind rado. Must have cd/aux button
    AVALON  2003-05 NC-Toy ax2  12 pin mini, plugs in behind radio. Must have cd/aux button
    CAMRY  98-04  NC-Toy ax1  12 pin large, plugs behind rado. Must have cd/aux button
    CAMRY  2005 NC-Toy ax2  12 pin mini, plugs in behind radio. Must have cd/aux button
    CELICA  98-02  NC-Toy ax1  12 pin large, plugs behind rado. Must have cd/aux button
    CELICA  2003-05 NC-Toy ax2  12 pin mini, plugs in behind radio. Must have cd/aux button
    COROLLA  98-04  NC-Toy ax1  12 pin large, plugs behind rado. Must have cd/aux button
    COROLLA  2005-06 NC-Toy ax2  12 pin mini, plugs in behind radio. Must have cd/aux button
    HIGHLANDER  2001-03 NC-Toy ax1  12 pin large, plugs behind rado. Must have cd/aux button
    HIGHLANDER  2004-05 NC-Toy ax2  12 pin mini, plugs in behind radio. Must have cd/aux button
    LAND CRUISER  98-02  NC-Toy ax1  12 pin large, plugs behind rado. Must have cd/aux button
    LAND CRUISER  2003-05 NC-Toy ax2  12 pin mini, plugs in behind radio. Must have cd/aux button
    MATRIX  2005-06 NC-Toy ax2  12 pin mini, plugs in behind radio. Must have cd/aux button
    MR2  98-02  NC-Toy ax1  12 pin large, plugs behind rado. Must have cd/aux button
    MR2  2003-05 NC-Toy ax2  12 pin mini, plugs in behind radio. Must have cd/aux button
    RAV 4  98-05  NC-Toy ax1  12 pin large, plugs behind rado. Must have cd/aux button
    SEQUIOA  00-02  NC-Toy ax1  12 pin large, plugs behind rado. Must have cd/aux button
    SEQUIOA  2003-05 NC-Toy ax2  12 pin mini, plugs in behind radio. Must have cd/aux button
    SIENNA  98-03  NC-Toy ax1  12 pin large, plugs behind rado. Must have cd/aux button
    SIENNA  2004-05 NC-Toy ax2  12 pin mini, plugs in behind radio. Must have cd/aux button
    SOLARA  00-03  NC-Toy ax1  12 pin large, plugs behind rado. Must have cd/aux button
    SOLARA  2003-05 NC-Toy ax2  12 pin mini, plugs in behind radio. Must have cd/aux button
    TACOMA  98-04  NC-Toy ax1  12 pin large, plugs behind rado. Must have cd/aux button
    TACOMA  2005-06 NC-Toy ax2  12 pin mini, plugs in behind radio. Must have cd/aux button
    TUNDRA  00-04  NC-Toy ax1  12 pin large, plugs behind rado. Must have cd/aux button
    TUNDRA  2003-05 NC-Toy ax2  12 pin mini, plugs in behind radio. Must have cd/aux button
    VOLKSWAGEN
    All Models  98-06  NC-VW ax1  12 pin plug that plugs in at the prewired cd changer in trunk. Not behind radio
    All Models  98-06  NC-VW ax2  Radio must have round scan" button with 8pin din behind the radio "
