AUDI Harness & Dash Kit Guide 1973 - 2004

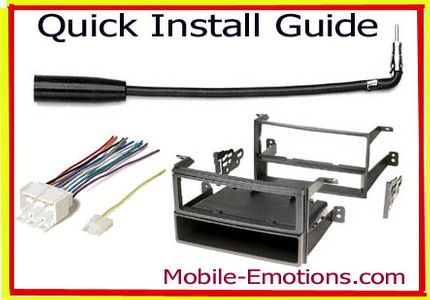

Professional Results everytime. Install Dash Kits keep the appearance original looking, while upgrading to aftermarket stereos. Wire haresses are color coded to ensure proper wire connections, and Antenna Adaptors help installers find the proper connections with aftermarket radios. These handy accessories safe time and money
New Page 1
MAKE/MODEL YEAR INSTALLATION KIT WIRE HARNESS

ANTENNA ADAPTER

FRONT SPEAKERS REAR SPEAKERS
 AUDI



  AFTER-MARKET RADIO TO FACTORY ANTENNA AFTER-MARKET RADIO TO FACTORY ANTENNA
A4 96-99 AUD-K610   VWH-1004 VW-8 VW-7 5.25"E 6.5"J
A6 96-99 AUD-K610   VWH-1004 VW-8 VW-7 5"E 6.5"J
A8 97-99 AUD-K610   VWH-1004 VW-8 VW-7 5"E 6.5"J
A4, A6, A8 00-03     VWH-1004 VW-8 VW-7
CABRIOLET 96-98 UI-K1400* UI-K777CL*   VW-6 VW-7 5"E 6.5"J
FOX 73-75 UR-K430         4"E 5"J
FOX 76-79 UI-K1400* UI-K777CL*       4"-6.5"E 5"J
80/90 88-95 UI-K1400* UI-K777CL*       3.5"A 5"J
100 89-94 UI-K1400* UI-K777CL*       4"A,4"E 4",6"J
100LS 73-82 UI-K1400* UI-K777CL*       3.5"A,4"E 6"J
200/S4/S6 87-95 UI-K1400* UI-K777CL*       4"A,4"E 4",6"J
4000/COUPE/QUATTRO 80-87 UI-K1400* UI-K777CL*       3.5"A,4"E 5"J
5000 80-83 UI-K1400* UI-K777CL*       3.5"A 4"J
5000S 84-89 UI-K1400* UI-K777CL*       3.5"A 6"J
5000CS 85-89 UI-K1400* UI-K777CL*       5"A,5.25"E 6.5"J
TT COUPE 00-04 AUD-K610   VWH-1004 VW-8 VW-7 5.25"E

Speaker Locations:
  • A. ~Top Dash~ B. ~Front Dash~ C. ~Kick Panel~ D. ~Upper Door~
  • E. ~Lower Door~ F. ~Behind Seat (Truck)~ G.~Lower Rear~ H. ~Upper Rear~
  • I. ~Rear Side Panel~ J. ~Rear Deck~(Trucks) K. ~Rear Sides~ L. ~Tail Sides~
  • M.~Rear Door~(Wagons, Vans)N.~Rear Top~ O.~Rear Posts (Trucks)~
