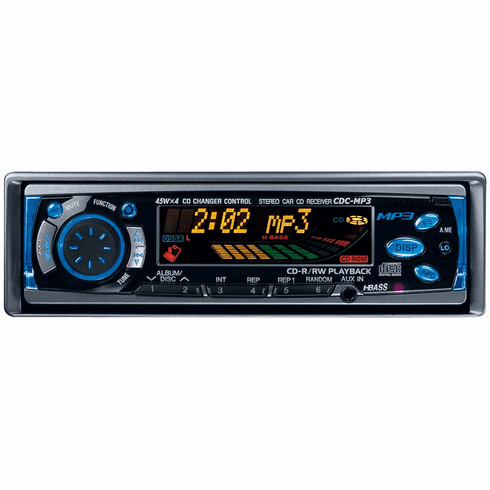

Aiwa CDC- MP3

---

User Manual

This unit is equipped with a large rotary knob that provides a convenient way to make adjustments. Volume, bass, treble, balance, fader, H-Bass and clock adjustments are made using the Smart Jog knob. When the Smart Jog knob is turned, the blue button and face accent backlighting flashes on and off.
CD Compatibility: Plays standard audio (16-bit, 44kHz, PCM) CDs, CD-Rs and CD-RWs, and it will play CD-ROMs, CD-Rs and CD-RWs that contain MP3 audio files.
MP3 File Playback: Can play MP3 files that have been recorded in an ISO 9660 compliant format with fixed bit rate (i.e. 8kbps, 64kbps, 96kbps, 128kbps, etc.) or variable bit rate compression (32 - 320kbps) on CD-ROM, CD-R and CD-RW discs. The CDC-MP3 will play up to 512 tracks per disc.

---

CLICK PIC FOR BIG IMAGE

---

Functions:
Album
Track (File) Skip (forward and backward)
Track (File) Repeat
Track Search: you may fast forward and fast reverse through a track
Random Play: files within an album (folder) are played in random order
Intro Scan: the first 10 seconds of each track
Name Display: the folder/file name will scroll across the display
Front Panel Auxiliary Input: A front panel stereo mini-jack is provided to allow you to connect your portable cassette, MD or MP3 player to this unit


Source Level Adjuster: The relative level of each source (FM/AM/CD/AUX) may be adjusted, from -4 to +4, and the setting will be retained in memory. The level of each source can be set so there won't be drastic leaps in volume when changing from one source to another.


DSSA (Drivers Sound Stage Adjustment): This feature adjusts the sound stage and tone balance to sound best from one of the front seat positions. You may set the DSSA feature for the front left seat or the front right seat, or the DSSA feature may be turned off.


H-Bass (High Bass): Instead of a loudness control, this unit is equipped with an H-Bass function. You may choose from 3 H-Bass settings to obtain powerful bass, or the H-Bass feature may be turned off for normal playback.


Selectable Tuning Spacing: You may select standard spacing (100kHz for FM, 10kHz for AM) or European tuning spacing (50kHz for FM, 9kHz for AM). The spacing is set using a switch recessed into the bottom of the unit; when the switched is used to change the spacing, the reset button should be pressed to activate the new spacing.


Compatibility: This unit is compatible with Aiwa mobile CD changers.

---
