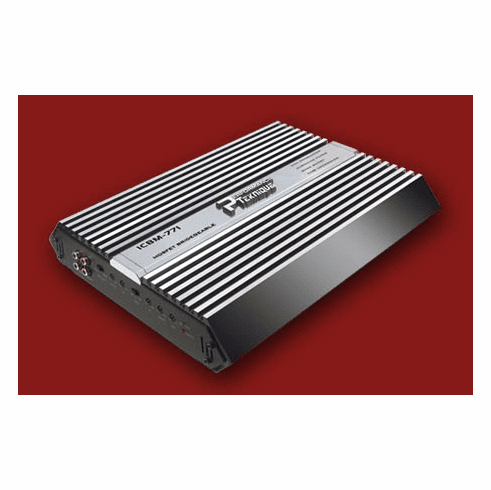

2 CHANNEL BRIDGEABLE Amp POWER AMPLIFIER 500w

2 CHANNEL BRIDGEABLE POWER AMPLIFIER 500w Performance Tecknique
2 CHANNEL BRIDGEABLE POWER AMPLIFIER 500w Performance Tecknique
Item# icbm-771
$79.99

Product Description:



  • Frequency Response: 15Hz to 40kHz
  • Crossover: Separates
    • High-pass: 50Hz to 1kHz Variable
    • Low-pass: 30Hz to 500Hz Variable
    • Slope: 24dB Octave
    • Subsonic Filter: 10Hz to 100Hz Variable
    • Bass Boost: 0 dB to 18dB Variable
  • Signal to Noise Ratio: >95dB
  • Power Consumption (Bridged RMS): 27A
  • Fuse Rating: 15Ax2


  • Input Sensitivity: 200mV to 6V Variable
  • Low level Input Impedance: 47K Ohm
  • Damping Factor: 180 into 4 Ohm
  • Channel Separation: >80dB
  • High & Low Level Input through RCA
  • Double Sided PCS
  • Dual Protection (Thermal & Short Circuit)
  • RCA Line Out
  • Power & Diagnostic LED Indicator
  • Soft Delayed Power On
  • Tri-Mode Capability


  • Dimension (WxHxL): 9.96" x 2.12" x 11.96"




    • 2 CHANNEL BRIDGEABLE POWER AMPLIFIER icbm-771

    • MAX OUTPUT POWER : 250Wx2CH @ 2 OHM
      POWER OUTPUT :
      120Wx2CH @ 2 OHM
      100Wx2CH @ 4 OHM
      240Wx1CH BRIDGED
    • 24dB/OCT. CROSSOVER SLOPE

    • VARIABLE SUBSONIC FILTER (10Hz-100Hz)

    • VARIABLE LOW PASS FILTER (30Hz-500Hz)
    • VARIABLE HIGH PASS FILTER (50Hz-1KHz)
    • VARIABLE 18dB BASS BOOST
    • HIGH & LOW LEVEL INPUT THROUGH RCA
    • DOUBLE SIDED PCB
    • DUAL PROTECTION (THERMAL & SHORT CIRCUIT)
    • RCA LINE OUT (PREAMP)
    • POWER & DIAGNOSTIC LED INDICATOR
    • 2 OHM STABLE STEREO
    • SOFT DELAYED POWER ON
    • TRI-MODE CAPABILITY
    • 0.05% THD
