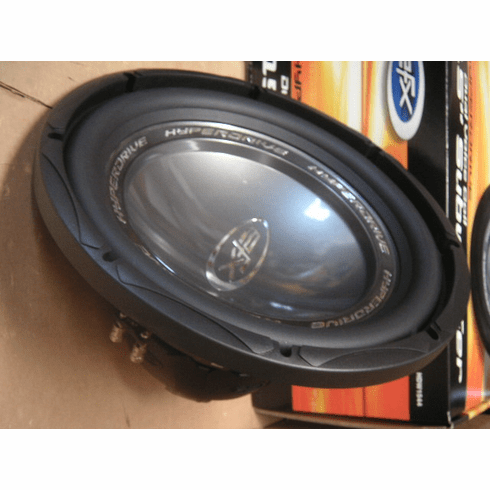

15" Dual Voice Coil Subwoofer 1200w HDW1544

15" Dual Voice Coil Subwoofer 1200w HDW1544
Item# HDW1544-scosche
$79.99

Product Description:

15" Dual Voice Coil Subwoofer 1200w HDW1544

HDW1544 15" Dual Voice Coil Subwoofer

15 inch DVC EFX subwoofer by scosche

1200 watts Peak

400 watts RMS

SPECS:

15" Dual VC Subwoofer

T/S PARAMETERS: Fs (hz):

28

Clamp Dia.

14.127359mm

Qms:

5,09

Mounting Depth:

7,07178mm

Vas (Liters):

119.75

RMS Power (Watts)

200/200

Xmax (mm):

11

MAX Power (Watts)

600/600

Sd (sq cm)

829.58

Nominal Impedance

4 Ohms x 2

Qes:

0,63

Voice Coil Size

2750mm

JRejfotims)

3.9/4.0

Magnet Weight:

70oz

Qts:

0.56

Freq. Response (hz):

25-300

Pe (Watts):

175/175

Sensitivity (dB):

88dB

J3PL_(dB):

88


Mms:

247,57
ENCLOSURE RECOMMENDATIONS

Sealed/Nonported

A sealed box will provide smooth tight bass

the flattest frequency response and best overall in quality.

External Dimensions A=18.0 in B=25.87 in C=10.0in

Internal Dimensions A=16.50 in B=24.37 in C=8.50 in c Wall Thickness: 0.75 in

Vented/Ported

Vented boxes have a vent tube (port) that lets some air out of the box as the woofer moves resulting in bass that resonates longer.

Box Parameters; Vb=1.66cu.ft V(total)=2.0 cu.ft Qtc=1.055 F3=40Hz

Box Parameters; Vb=1.66 cu.ft Fb=40Hz

V(total)=2.0 cu.ft F3=40Hz

External Dimensions A=18.0in B=25.87 in C=10.00in

Internal Dimensions A=16.50in B=24.37in C=8.50 in

Wall Thickness; 0.75 in D (x1)=Vent; 3.0 in I.D. Length; 4.87 in
