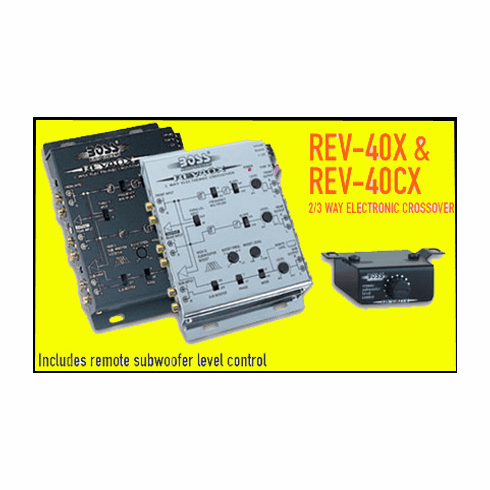

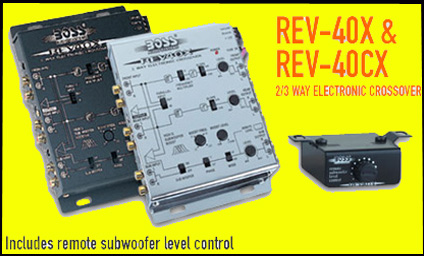

Boss Rev-40X 2/3 way Electronic Crossover

Boss Rev-40X 2/3 way Electronic Crossover
Boss Rev-40X 2/3 way Electronic Crossover
Item# bossRev40x
$48.00

Product Description:





Control is the Key to fine-tuning the response of your system. These Boss electronic crossovers increase the efficiency of your system by directing specific frequency ranges to the speakers that can best reproduce those frequencies. You can drastically improve your signal-to-noise performance by adding an LD5 line driver to pump up your preamp line voltage.

Boss Rev-40X Electronic Crossover

2/3 Way Electronic Crossover

  • Inputs: front, rear and subwoofer
  • Outputs: front, rear and subwoofer
  • Frequency multiplier: x1 or x20
  • Selectable crossover Frequencies
  • low pass 32Hz-250hz
  • high pass 40Hz-400Hz
  • Variable Bass Boost +-18
  • Bass boost frequency selector 25-250Hz
  • Selectable crossover Slope: 6dB/octave or 12dB/octave
  • Parallel input switch (feeding multiple channels from one input)
  • Phase shift, stereo/mono
  • Signal-to-noise >110db
  • Remote subwoofer level control INCLUDED
  • Output voltage: 8 volts max
  • Lowpass input selector
  • Direct or Front/rear mix
  • gold plated Connectors
  • MobileEmtions.com
  • remote on/off power control
  • LED power indicator
  • Subwoofer phase switch
  • rev40xc is the chrome version
