2006-2008 GM LAN Vehicles without Onstar & Bose - GM40C non BOSE ONSTAR
  • Needed for Correctly Installing Aftermarket Stereos

    • NC-GM40C - GM LAN-29 Bit Vehicles w/out Onstar & Bose 2006-08

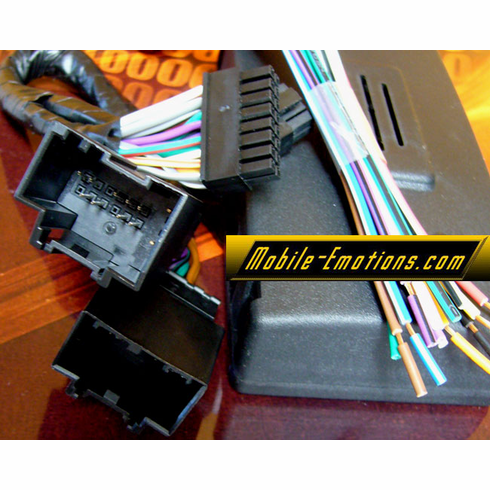

    NC-GM40C - GM LAN-29 Bit Vehicles w/out Onstar & Bose 2006-08
    Item# NC-GM40C
    $119.99
    Availability: Usually ships the next business day

    Product Description:

    NC-GM40C 2007-09 GM LAN

    GM40 non BOSE / ONSTAR

    2007- UP GM LAN Vehicles without Onstar & Bose



    DESIGNED TO ALLOW COMPLETE REMOVAL OF FACTORY RADIO FOR AFTERMARKET INSTALL

    • Uses factory speaker for chime

    • Adjustable chime volume (select vehicles)

    • Generates a +12v switched output for aftermarket radios

    • Automatic low voltage shutdown

    • Illumination output wire

    • Works on vehicles without OnStar, and BOSE

    • Phone mute



    NOTES:

    MAINTAINS THE FOLLOW FACTORY OPTIONS:  INCLUDING EASY TO FOLLOW DESCRIPTIVE DIRECTIONS

    •  Will Not work w/ ANY BOSE SYSTEMS (AMPLIFIED OR NOT)

    • ( WILL NOT WORK WITH Y91/Z75 BOSE SYSTEM)

      • Y91 / Z75 CODE IS FOUND IN SERVICE PARTS STICKER ( USUALLY IN GLOVE BOX)

    • THIS HARNESS IS FOR KEEPING ALL POWER AND SAFETY FEATURES WORKING

    • FOLDING MIRRORS (INCLUDING REVERSE)

    • PARK ASSIST - BOTH FRONT & REAR

    • HEATED SEATS

    • TURN SIGNAL (CLICKER) WITHOUT ADDITIONAL RELAY

    • POWER RUNNING BOARDS ( IF FACTORY EQUIPPED)

    • AC FAN-SPEED ( when  OnStar is Activated)

    • PROVIDES

      • 12V IGNITION OUTPUT (5A MAX) INCLUDING RAP (RETAINED ACCESSORY POWER)

      • ILLUMINATION OUTPUT (2A MAX)

      • TELEPHONE NEGATIVE MUTE TRIGGER (INPUT)

      • LOW VOLTAGE (BATTERY RUN-DOWN PROTECTION)

      • ADJUSTABLE ONSTAR AND CHIME VOLUME
