16 Pin JVC Aftermarket Radio Harness Small

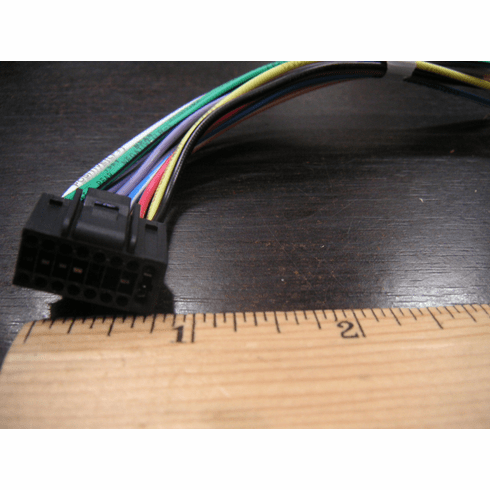

JVC Wire Harness 16Pin Plugs into Radio Small
JVC Wire Harness 16Pin Plugs into Radio Small
Item# 16Pin-JVC-Small-Plug

Price

$12.00

Sale Price :

$9.95

Product Description:

JVC Wire Harness 16Pin Plugs into Radio Small
Plugs into JVC Stereo - Great replacement Wire Information Summary Below

Not all wires are always used so feel comfortable if you have some wires that are not needed -

RED (-Power 12v) / Black (-Ground) / Yellow (-Remote or Mem) /and Blue(-PowerAntenna)



  • Red: 12 volt ignition (power)
  • Yellow: 12 volt Battery (memory wire)-
  • Black: Ground
  • Blue: Power Antenna
  • Blue/White: Amp Turn on/Remote Wire
  • Orange: Illumination
  • Orange/white: Dimmer
  •
  • Gray/Black: Right Front - on speaker
  • White: Left Front + on Speaker
  • White/Black: Left Front - on Speaker
  • Violent: Right Rear + on speaker
  • Violent/Black: Right Rear - on speaker
  • Green: Left Rear + on Speaker
  • Green/Black: Left Rear - on Speaker
  • This pic is an example.., there are 2 JVC After Market wire harnesses, one is large and the other is small

    This pic is an example of the two differences,...
